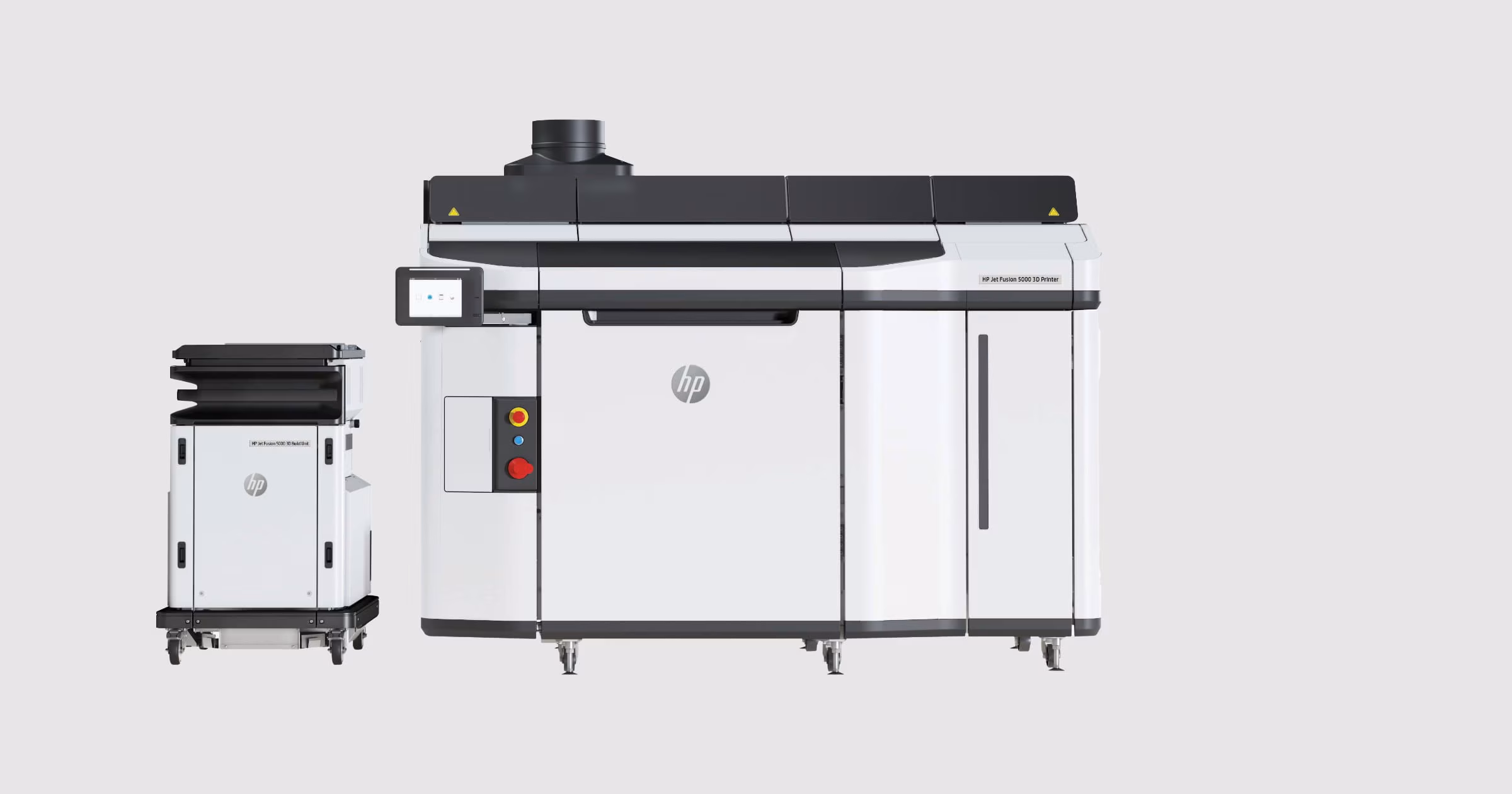

HP Multi Jet Fusion 5000
Our HP Jet Fusion 5000 delivers production-grade polymer parts with exceptional detail, isotropic properties, and industry-leading throughput. Perfect for functional prototypes and end-use production parts.
Key Capabilities
- • Build Volume: 27L (380 x 284 x 380mm), expandable to 41L for continuous production
- • Resolution: ±0.08mm layer thickness with fine detail and sharp edges
- • Mechanical Properties: Isotropic strength in all directions
- • Speed: High throughput with multiple build units for continuous printing
Available Materials
PA 12 (Nylon 12)
Industry-standard polyamide with excellent mechanical properties, chemical resistance, and durability.
PA 12 GB (Glass Bead)
40% glass bead filled for enhanced stiffness, reduced warpage, and improved surface finish.
PA 11 (Bio-based Nylon)
Bio-sourced material with higher elongation and impact resistance than PA 12.
TPU (Thermoplastic Polyurethane)
Flexible elastomer for gaskets, seals, and cushioning applications.
PP (Polypropylene)
Chemical resistant with excellent fatigue properties for living hinges.
Typical Applications
- Technology
- Multi Jet Fusion (MJF)
- Build Volume
- 380 x 284 x 380mm
- Layer Thickness
- 0.08mm
- Minimum Wall Thickness
- 0.5mm
- Minimum Feature Size
- 0.8mm
- Dimensional Accuracy
- ±0.3mm (±0.002in/in)
- Surface Finish
- Ra 6-10 µm (as-printed)
- ✓ Media Blasting: Smooth surface finish and color uniformity
- ✓ Dyeing: Black or custom colors available
- ✓ CNC Machining: Tight tolerance features and threads
- ✓ Vapor Smoothing: Improved surface finish and strength
- ✓ Inserts: Threaded inserts, heat-set bushings
- ✓ Assembly: Multi-part assembly and testing
Why HP Multi Jet Fusion?
- ✓ Up to 10x faster than SLS for equivalent quality
- ✓ No support structures required
- ✓ Dense, non-porous parts with consistent properties
- ✓ Ideal for complex geometries and thin walls
- ✓ Economical for both prototyping and production
- Technology
- Laser Powder Bed Fusion
- Build Volume
- 425 x 425 x 550mm
- Laser System
- Quad 1000W Fiber Lasers
- Build Rate
- Up to 150 cm³/h
- Layer Thickness
- 20-100 µm
- Minimum Feature Size
- 0.2mm
- Dimensional Accuracy
- ±0.1mm (±0.002in/in)
Stainless Steels
316L, 17-4 PH, 15-5 PH
Tool Steels
H13, M2, maraging steel
Titanium Alloys
Ti-6Al-4V (Grade 5), CP Titanium
Aluminum Alloys
AlSi10Mg, AlSi7Mg, Scalmalloy
Nickel Alloys
Inconel 625, Inconel 718
Farsoon Advantages
- ✓ Large build volume for industrial parts
- ✓ Quad laser system for high throughput
- ✓ Permanent filtration system (10+ year life)
- ✓ Open platform for custom parameters
- ✓ Real-time quality monitoring

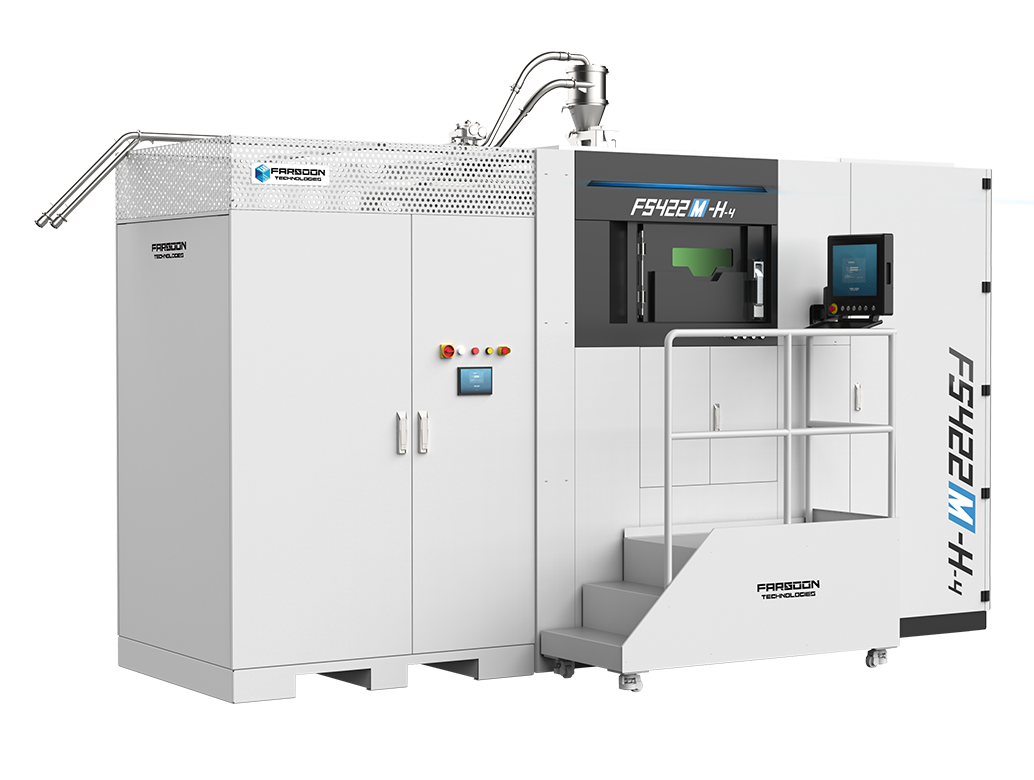

Farsoon FS422M Metal LPBF
Our Farsoon FS422M metal laser powder bed fusion system delivers high-quality metal parts with exceptional build volume and throughput. Ideal for aerospace, automotive, and industrial applications requiring metal performance.
Key Capabilities
- • Massive Build Volume: 425 x 425 x 550mm for large industrial parts
- • Quad Laser System: Four 1000W fiber lasers for high productivity
- • High Build Rate: Up to 150 cm³/h for faster production
- • Advanced Control: Real-time monitoring and quality assurance
Metal Post-Processing
- • Heat Treatment: Stress relief, annealing, solution treatment, and aging
- • Support Removal: EDM wire cutting or manual removal
- • CNC Machining: Precision features and tight tolerances
- • Surface Finishing: Bead blasting, polishing, coating
- • HIP Processing: Hot isostatic pressing for maximum density
Typical Applications
Quality & Certification
- • Material certifications and test reports
- • Dimensional inspection (CMM, laser scanning)
- • Mechanical testing (tensile, hardness, fatigue)
- • Non-destructive testing (X-ray, CT scanning available)
- • Full traceability documentation
Equipment & Materials Capabilities
Our comprehensive printer fleet and material offerings across multiple technologies.
| Equipment | Technology | Build Volume (mm) | Material Type | Key Materials Available |
|---|---|---|---|---|
| 3D Systems SLA7000 3D Systems | SLA | 508 × 508 × 600 | Polymer Liquid | Accura Xtreme-Grey, SOMOS Waterclear Ultra |
| 3D Systems ProX 800 3D Systems | SLA | 650 × 750 × 550 | Polymer Liquid | Accura Xtreme-Grey, SOMOS Waterclear Ultra |
| 3D Systems Figure 4 3D Systems | DLP | 124.8 × 70.2 × 346 | Polymer Liquid | PRO-BLK 10, TOUGH-BLK 20, RUBBER-65A, HI TEMP 300 |
| Stratasys Fortus 450mc Stratasys | FDM | 406 × 355 × 406 | Polymer Filament | ASA, Nylon 12 CF, Ultem 1010 |
| Stratasys F900 Stratasys | FDM | 914.4 × 609.6 × 914.4 | Polymer Filament | ASA, Nylon 12 CF, Ultem 1010 |
| HP 5210 HP | MJF | 380 × 284 × 380 | Polymer Powder | PA12 (Nylon 12), ULTRASINT TPU01 |
| EOS P760 EOS | SLS | 700 × 380 × 580 | Polymer Powder | PA2200 (Nylon 12) |
| EOS P770 EOS | SLS | 700 × 380 × 580 | Polymer Powder | PA2200 (Nylon 12) |
| 3D Systems S230 3D Systems | SLS | 550 × 550 × 750 | Polymer Powder | PA2200 (Nylon 12) |
| 3D Systems ProX DMP 320 3D Systems | DMLS | 300 × 200 × 200 | Metal Powder | 316L Stainless Steel |
| SLM 500 SLM | DMLS | 500 × 280 × 325 | Metal Powder | Aluminum, Inconel 718 |
| Renishaw RenAM 500Q Renishaw | DMLS | 250 × 250 × 350 | Metal Powder | 316L Stainless Steel |
| Additive Industries MetalFab2 Additive Industries | DMLS | 250 × 250 × 350 | Metal Powder | Inconel 718, Aluminum, Titanium |
| ExOne S-Max ExOne | Binder Jet | 1800 × 1000 × 700 | Sand | Sand M6000 |
🏭 Production Capacity
Multiple printers per technology enable high-volume production runs while maintaining rapid turnaround times.
🎯 Technology Selection
Each technology offers unique advantages. Our team can help you select the best process for your application.
📋 Material Data Sheets
Complete technical data sheets available for all materials. Contact us for detailed specifications.
Complete Finishing & QC Services
From raw prints to production-ready parts, we offer comprehensive post-processing and quality control to meet your exact specifications.
- • Media blasting (glass bead, ceramic)
- • Tumbling and vibratory finishing
- • Vapor smoothing for polymers
- • Polishing and buffing
- • Painting and coating
- • Dyeing (black or custom colors)
- • CNC milling for tight tolerances
- • Threading and tapping
- • Heat-set threaded inserts
- • Multi-part assembly
- • Adhesive bonding
- • Ultrasonic welding
- • Dimensional inspection reports
- • CMM measurement
- • 3D laser scanning
- • Material certifications
- • First article inspection (FAI)
- • Statistical process control
3D Printer Sourcing & Consultation
Looking to bring 3D printing in-house? We help you find the right plastic or metal printer and right-size it for your specific application, production volume, and budget.
What We Provide
- • Technology Assessment: Evaluate your parts, materials, and volume requirements to recommend the best printing technology (FDM, SLA, SLS, MJF, Metal LPBF, etc.)
- • Equipment Sizing: Match build volume, throughput, and capabilities to your production needs without over- or under-buying
- • Vendor Comparison: Independent advice on HP, Farsoon, Desktop Metal, Markforged, Stratasys, EOS, and other leading manufacturers
- • Total Cost Analysis: Calculate true cost per part including machine, materials, labor, and post-processing
- • ROI Projections: Realistic payback timelines based on your production volume and part costs
Why Work With Us?
We're not tied to any specific manufacturer. Our recommendations are based on real-world production experience with multiple technologies, so you get unbiased advice that fits your needs.
- ✓ Hands-on experience with HP, Farsoon, and other systems
- ✓ No sales commissions - we work for you, not the OEM
- ✓ Post-sale training and workflow setup available
Entry-Level (Desktop)
Bambu Lab, Prusa, Ultimaker - Great for prototyping and low-volume production
Production (Industrial SLS/MJF)
HP Multi Jet Fusion, Farsoon HT, Sinterit - High throughput and repeatable quality
Engineering Polymers
Stratasys F900, Fortus - ULTEM, PEEK, and other high-temp materials
Entry-Level Metal
Desktop Metal Studio, Markforged Metal X - Lower upfront cost, office-friendly
Production Metal (LPBF)
Farsoon FS271M/422M, EOS M290, Trumpf - Industrial-grade metal printing
Large Format Metal
Farsoon FS622M, EOS M400 - For aerospace and large tooling applications
